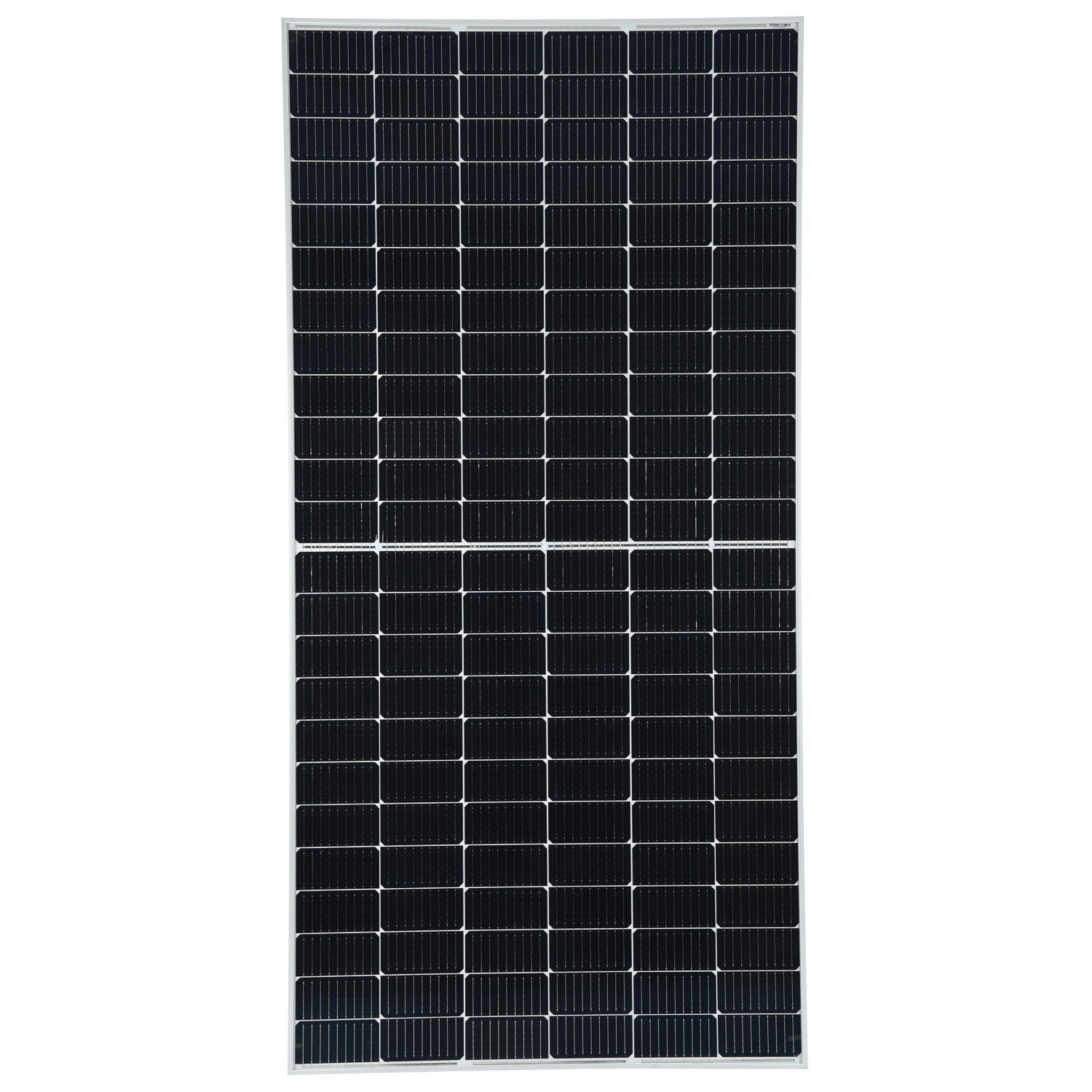

PERC Mono 700W

Short Description:

  • FOB Price:0.12USD/W-0.16USD/W
  • Min.Order Quantity:10 Pieces
  • Supply Ability:One day one 40HQ
  • Port:Ningbo/Shanghai/Guangzhou/Shenzhen
  • Payment Terms:T/T,L/C,Western Union

Product Detail

Product Tags

Cell Type Monocrystalline              210x105mm (8 inches)

No of Cell                                           132 (6x22pcs)

Dimensions                                       2384x1303x35mm

Weight                                                33.5Kg

Front Glass                                        3.2mm,High Transmission, Low Iron,Tempered Glass

Junction box                                     IP68 Rated

Output Cable                                    TUV 1×4.0mm2/UL12AWG,Length:300mm

Technical parameter

Maximum Power(W)                            700W

Optimum Power Voltage(Vmp)         39.58V

Optimum Operating Current(Imp)   17.69A

Open Circuit Voltage(Voc)                  46.75V

Short Circuit Current(Isc)                   18.92A


Temperature and Coefficients

Operating Temperature(°C):                -40°C ~ + 85°C

Maximum System Voltage:                  1000V(UL)/1500V(IEC) DC

Maximum Rated Current Series:         25A

Temperature Coefficients of Pmax:     -0.35%

Temperature Coefficients of Voc:        -0.29%

Temperature Coefficients of Isc:           0.048%

Nominal Operationg Cell Temperature (NOCT): 45+/-2°C
