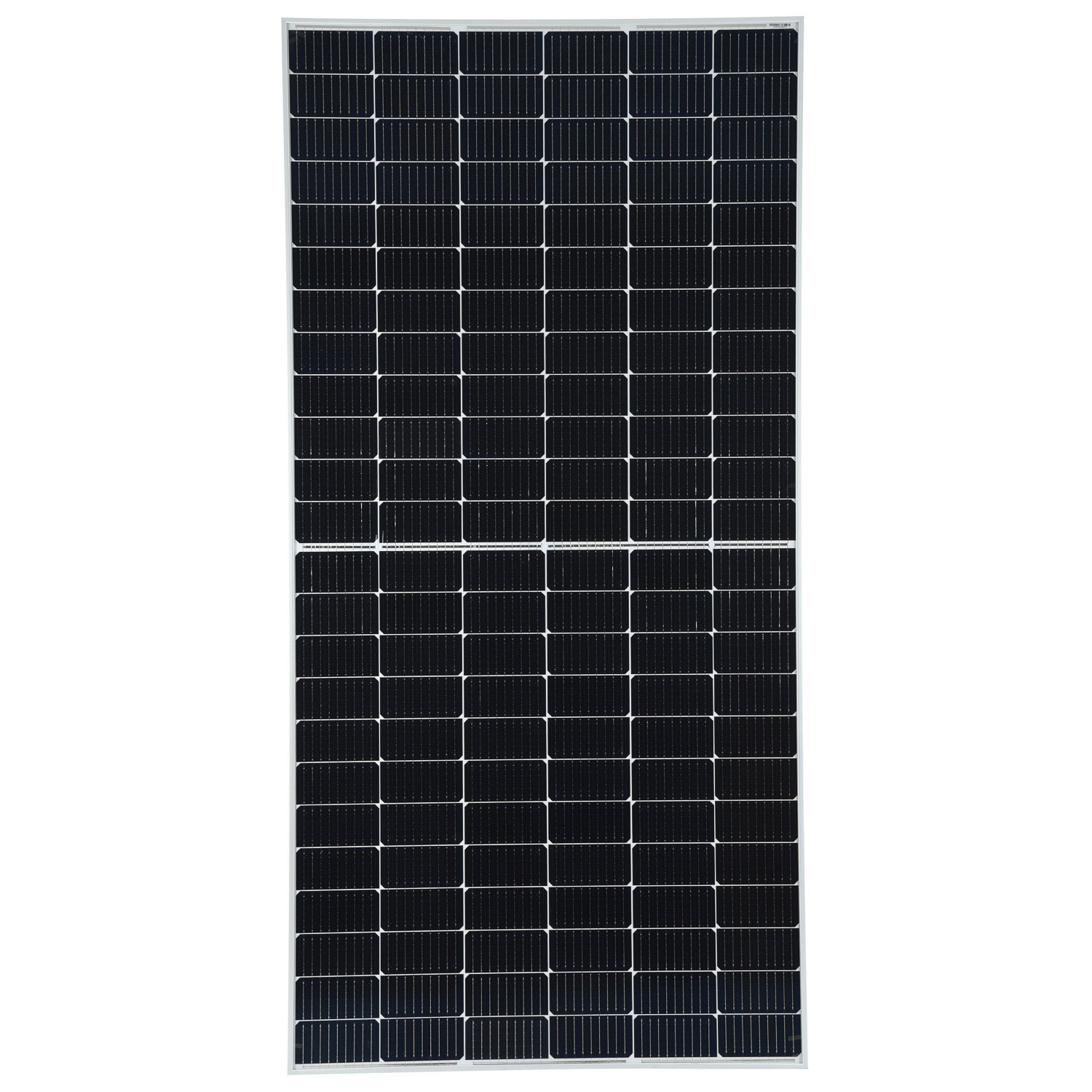

PERC Mono 660W

Short Description:

  • FOB Price:0.13USD/W-0.16USD/W
  • Min.Order Quantity:10 Pieces
  • Supply Ability:One day one 40HQ
  • Port:Ningbo/Shanghai/Guangzhou/Shenzhen
  • Payment Terms:T/T,L/C,Western Union

  • :
  • Product Detail

    Product Tags

    Cell Type Monocrystalline              210x105mm (8 inches)

    No of Cell                                           132 (6x22pcs)

    Dimensions                                       2384x1303x35mm

    Weight                                                33.5Kg

    Front Glass                                        3.2mm,High Transmission, Low Iron,Tempered Glass

    Junction box                                     IP68 Rated

    Output Cable                                    TUV 1×4.0mm2/UL12AWG,Length:300mm

    Technical parameter

    Maximum Power(W)                            660W

    Optimum Power Voltage(Vmp)         38.38V

    Optimum Operating Current(Imp)   17.2A

    Open Circuit Voltage(Voc)                  45.55V

    Short Circuit Current(Isc)                   18.45A


    Temperature and Coefficients

    Operating Temperature(°C):                -40°C ~ + 85°C

    Maximum System Voltage:                  1000V(UL)/1500V(IEC) DC

    Maximum Rated Current Series:         25A

    Temperature Coefficients of Pmax:     -0.35%

    Temperature Coefficients of Voc:        -0.29%

    Temperature Coefficients of Isc:           0.048%

    Nominal Operationg Cell Temperature (NOCT): 45+/-2°C
