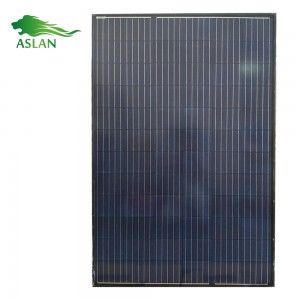

Poly-crystalline Solar Panel 90W

Short Description:

Cell Type Poly-crystalline           156x104mm (6 inch)

No of Cell                                    36 (4x9pcs)

Dimensions                                1008x678x35mm

Weight                                        8.0KGS

Front Glass                                3.2mm,High Transmission, Low Iron,Tempered Glass

Junction box                               IP65 Rated

Output Cable                              TUV 1×4.0mm2/UL12AWG,Length:900mm


  • FOB Price: 0.17USD/W-0.8USD/W
  • Min.Order Quantity: 1 Piece
  • Supply Ability: One day one 40HQ
  • Port: Ningbo/Shanghai
  • Payment Terms: T/T,L/C,Western Union
  • Product Detail

    Product Tags

    Poly-crystalline Solar Panel 90W

    Technical parameter

    Maximum Power(W)                        90W

    Optimum Power Voltage(Vmp)        18.33V

    Optimum Operating Current(Imp)    4.91A

    Open Circuit Voltage(Voc)               21.96V

    Short Circuit Current(Isc)                 4.89A

    Mechanical Characteristics

    Cell Type Poly-crystalline                 156x104mm (6 inch)

    No of Cell                               36 (4x9pcs)

    Dimensions                           1008x678x35mm

    Weight                                   8.0KGS

    Front Glass                           3.2mm,High Transmission, Low Iron,Tempered Glass

    Junction box                                    IP65 Rated

    Output Cable                                   TUV 1×4.0mm2/UL12AWG,Length:900mm

    Temperature and Coefficients

    Operating Temperature(°C):                -40°C ~ + 85°C

    Maximum System Voltage:                  600V(UL)/1000V(IEC) DC

    Maximum Rated Current Series:         15A

    Temperature Coefficients of Pmax:     -0.435%

    Temperature Coefficients of Voc:        -0.35%

    Temperature Coefficients of Isc:           0.043%

    Nominal Operationg Cell Temperature (NOCT): 47+/-2°C

     Materials of solar panel

    1).Solar Cell——Poly-crystalline solar cell 156*104mm

    2).Front Glass——-3.2mm, high transmission, low iron, tempered glass

    3).EVA——-excellent anti-aging EVA

    4).TPT——-TPT hot seal made of flame resistance

    5).Frame——anodized aluminum profile

    6).Junction Box——-IP65 rated, high quality, with diode protection

    Superiority: high quality anodized aluminum frame, high efficiency long life, easy installation, strong wind resistance, strong hail resistance.

    Features

    1. High cell efficiency with quality silicon materials for long term output stability

    2. Strictly quality control ensure the stability and reliability, totally 23 QC procedures

    3. High transmittance low iron tempered glass with enhanced stiffness and impact resistance

    4. Both Poly-crystalline and Mono-crystalline

    5. Excellent performance in harsh weather

    6. Outstanding electrical performance under high temperature and low irradiance

    Quality assurance testing

    Thermal cycling test

    Thermal shock test

    Thermal/Freezing and high humidity cycling test

    Electrical isolation test

    Hail impact test

    Mechanical, wind and twist loading test

    Salt mist test

    Light and water-exposure test

    Moist carbon dioxide/sulphur dioxide
