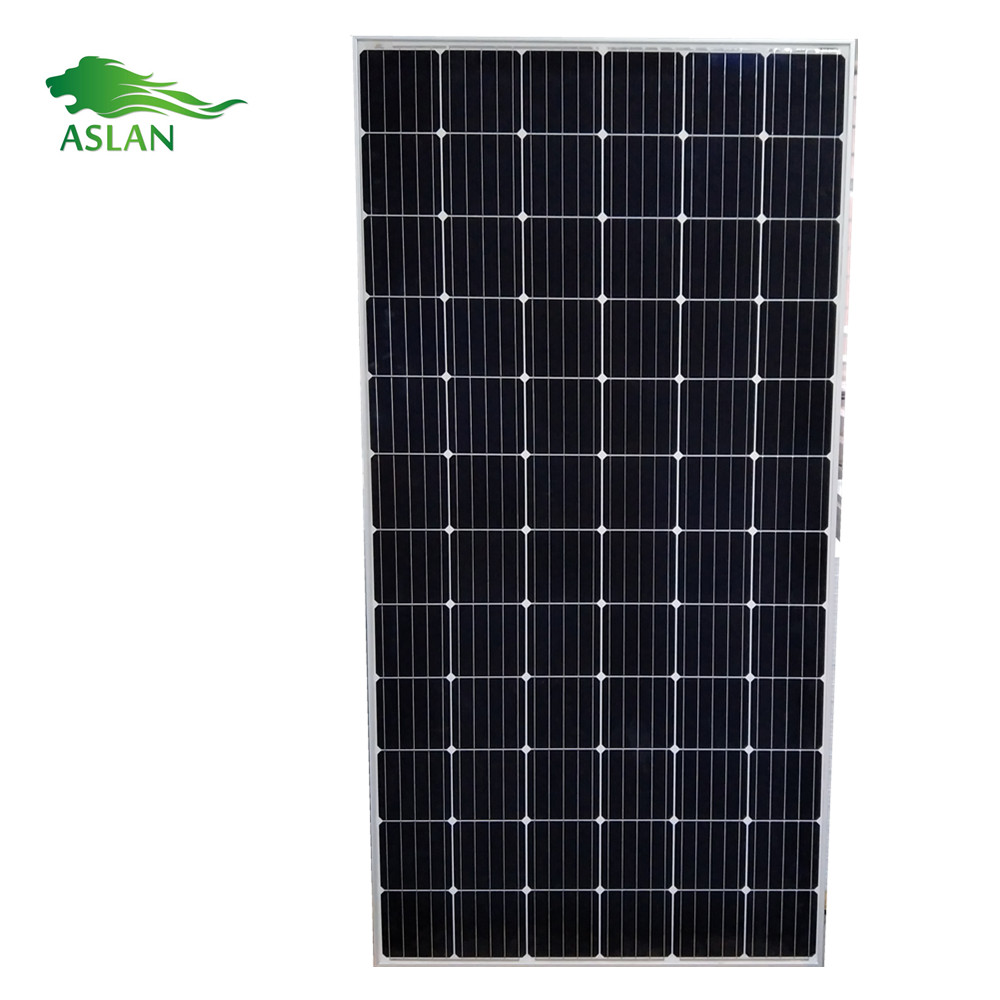

Mono-crystalline Solar Panel 370W

Short Description:

Cell Type Monocrystalline                 156x156mm (6 inch)

No of Cell                                           72 (6x12pcs)

Dimensions                                        1956x992x40mm

Weight                                                22Kg

Front Glass                                        3.2mm,High Transmission, Low Iron,Tempered Glass

Junction box                                       IP65 Rated

Output Cable                                      TUV 1×4.0mm2/UL12AWG,Length:900mm


  • FOB Price: 0.17USD/W-0.8USD/W
  • Min.Order Quantity: 1 Piece
  • Supply Ability: One day one 40HQ
  • Port: Ningbo/Shanghai
  • Payment Terms: T/T,L/C,Western Union
  • Product Detail

    Product Tags

    Technical parameter

    Maximum Power(W)                         370W

    Optimum Power Voltage(Vmp)         37.1V

    Optimum Operating Current(Imp)     9.97A

    Open Circuit Voltage(Voc)                44.52V

    Short Circuit Current(Isc)                   10.96A

    Mechanical Characteristics

    Cell Type Monocrystalline                 156x156mm (6 inch)

    No of Cell                                           72 (6x12pcs)

    Dimensions                                        1956x992x50mm

    Weight                                                22.5Kg

    Front Glass                                        3.2mm,High Transmission, Low Iron,Tempered Glass

    Junction box                                       IP65 Rated

    Output Cable                                      TUV 1×4.0mm2/UL12AWG,Length:900mm

    Temperature and Coefficients

    Operating Temperature(°C):                -40°C ~ + 85°C

    Maximum System Voltage:                  600V(UL)/1000V(IEC) DC

    Maximum Rated Current Series:         15A

    Temperature Coefficients of Pmax:     -0.47%

    Temperature Coefficients of Voc:        -0.389%

    Temperature Coefficients of Isc:           0.057%

    Nominal Operationg Cell Temperature (NOCT): 47+/-2°C
