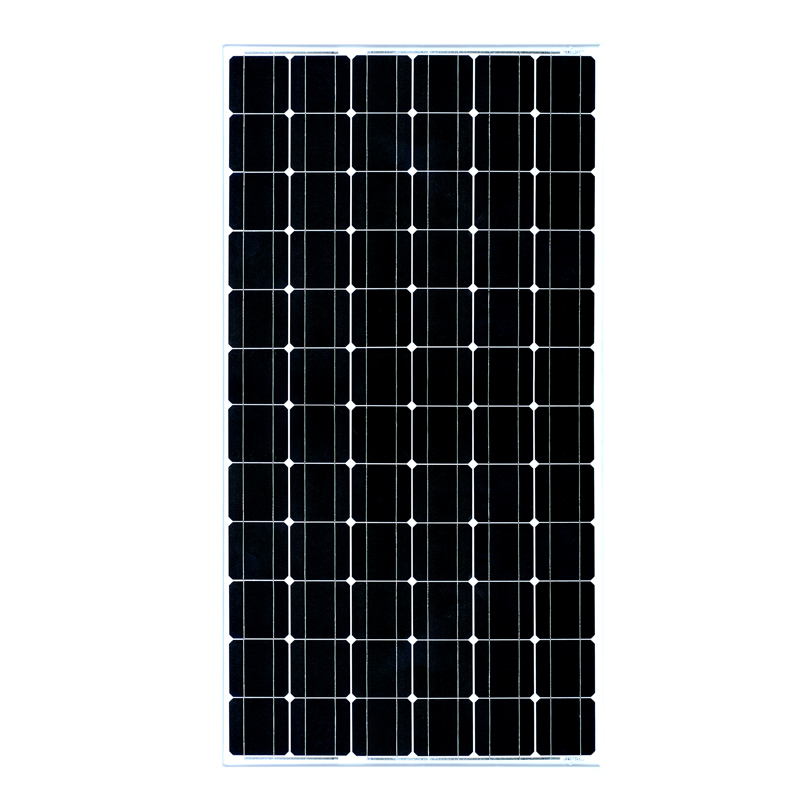

Mono-Crystalline 200W Solar Panel

Short Description:

Cell Type Monocrystalline                    125x125mm (5 inch)

No of Cell                                              72 (6x12pcs)

Dimensions                                          1580x808x35mm

Weight                                                  14.5Kg

Front Glass                                           3.2mm,High Transmission, Low Iron,Tempered Glass

Junction box                                         IP65 Rated

Output Cable                                        TUV 1×4.0mm2/UL12AWG,Length:900mm


  • FOB Price: 0.29USD/W-1USD/W
  • Min.Order Quantity: 1 Piece
  • Supply Ability: One day one 40HQ
  • Port: Ningbo/Shanghai
  • Payment Terms: T/T,L/C,Western Union
  • Product Detail

    Product Tags

    Mono-Crystalline 200W Solar Panel

    Technical parameter

    Maximum Power(W)                           200W

    Optimum Power Voltage(Vmp)           37.29V

    Optimum Operating Current(Imp)       5.36A

    Open Circuit Voltage(Voc)                  45.48V

    Short Circuit Current(Isc)                     5.89A

    Mechanical Characteristics

    Cell Type Monocrystalline                    125x125mm (5 inch)

    No of Cell                                              72 (6x12pcs)

    Dimensions                                          1580x808x35mm

    Weight                                                  14.5Kg

    Front Glass                                           3.2mm,High Transmission, Low Iron,Tempered Glass

    Junction box                                         IP65 Rated

    Output Cable                                        TUV 1×4.0mm2/UL12AWG,Length:900mm

    Temperature and Coefficients

    Operating Temperature(°C):                -40°C ~ + 85°C

    Maximum System Voltage:                  600V(UL)/1000V(IEC) DC

    Maximum Rated Current Series:         15A

    Temperature Coefficients of Pmax:     -0.47%

    Temperature Coefficients of Voc:        -0.389%

    Temperature Coefficients of Isc:           0.057%

    Nominal Operationg Cell Temperature (NOCT): 47+/-2°C

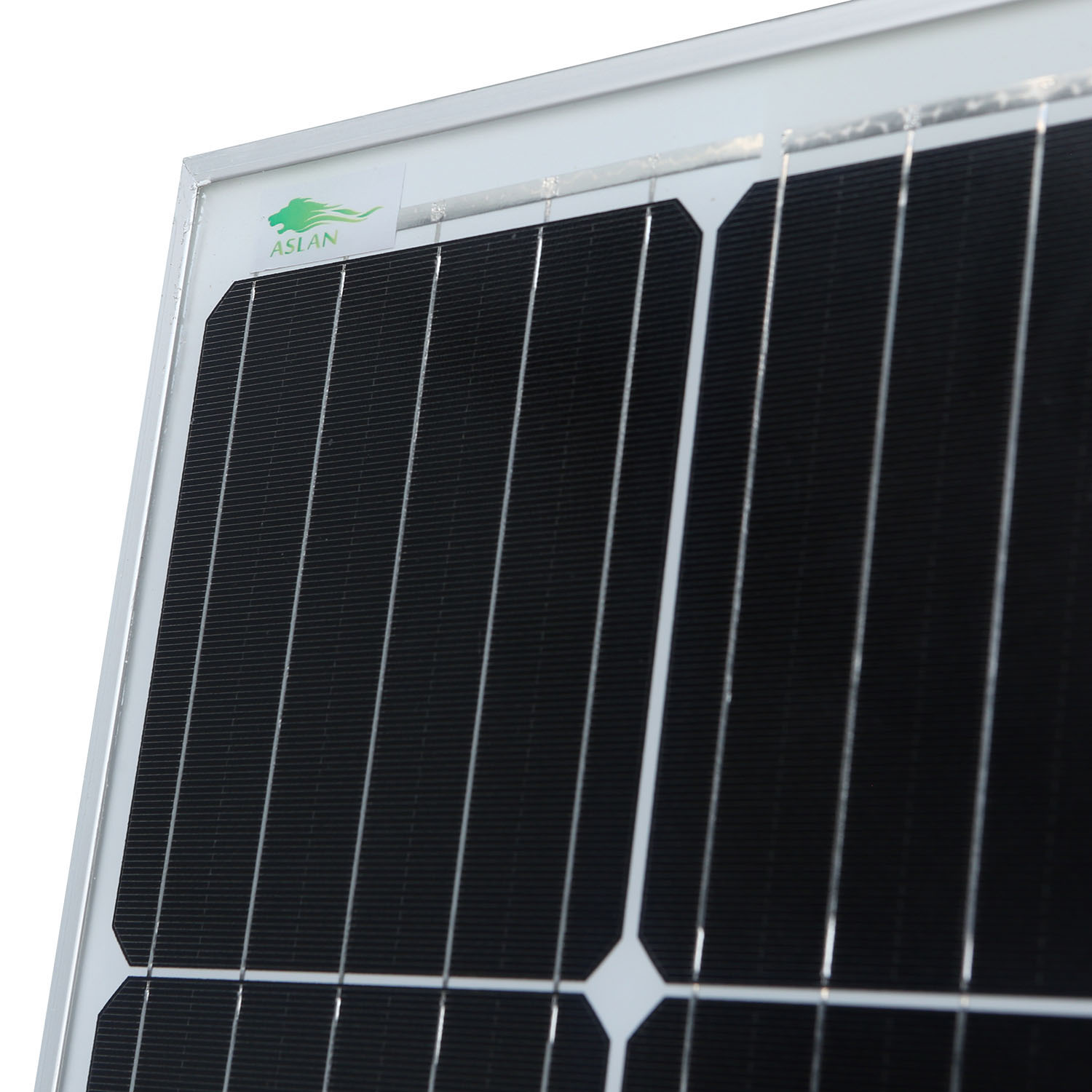

    Materials of solar panel

    1).Solar Cell——Mono-crystalline solar cell 125*125mm

    2).Front Glass——-3.2mm, high transmission, low iron, tempered glass

    3).EVA——-excellent anti-aging EVA

    4).TPT——-TPT hot seal made of flame resistance

    5).Frame——anodized aluminum profile

    6).Junction Box——-IP65 rated, high quality, with diode protection

    Superiority: high quality anodized aluminum frame, high efficiency long life, easy installation, strong wind resistance, strong hail resistance.

    Features

    1. High cell efficiency with quality silicon materials for long term output stability

    2. Strictly quality control ensure the stability and reliability, totally 23 QC procedures

    3. High transmittance low iron tempered glass with enhanced stiffness and impact resistance

    4. Both Polycrystalline and Mono-crystalline

    5. Excellent performance in harsh weather

    6. Outstanding electrical performance under high temperature and low irradiance

    Quality assurance testing

    Thermal cycling test

    Thermal shock test

    Thermal/Freezing and high humidity cycling test

    Electrical isolation test

    Hail impact test

    Mechanical, wind and twist loading test

    Salt mist test

    Light and water-exposure test

    Moist carbon dioxide/sulphur dioxide
